Double Block & Bleed Ball Valve
Double Block & Bleed Ball Valve

Double Block & Bleed Ball Valve

Product Description
Double Block and Bleed Valves assure double isolation function thanks to two obturator inserted in a single body and they provide the bleed function by means of a bleed vent system located between obturators (body port and ball gate or needle valve), from the floating ball valve design, XDV DBB valves with several different constructions.
Product Range&Features
Size 1/2"~24"
Rating 150LB~2500LB
Body Materials Carbon Steel, Stainless Steel, XDSS, etc.
Design Standards API 6D/ASME B16.34
Trim Per API 6D
Face to Face Standards ASME B16.10
Flange Dimension Standards ASME B 16.5/ASME B16.47
Pressure Test Standards API598,API 6D
Quality/Product Certifications ISO9001, ISO14001, ISO18001
Fugitive Emissions ISO 15848-1, API 622
NACE NACE MR 0103 NACE MR 0175
Shutoff Class API 598 (Zero Leakage), API 6D
End Connection RF, RTJ
Operation Lever, Gear, Motor, Pneumatic

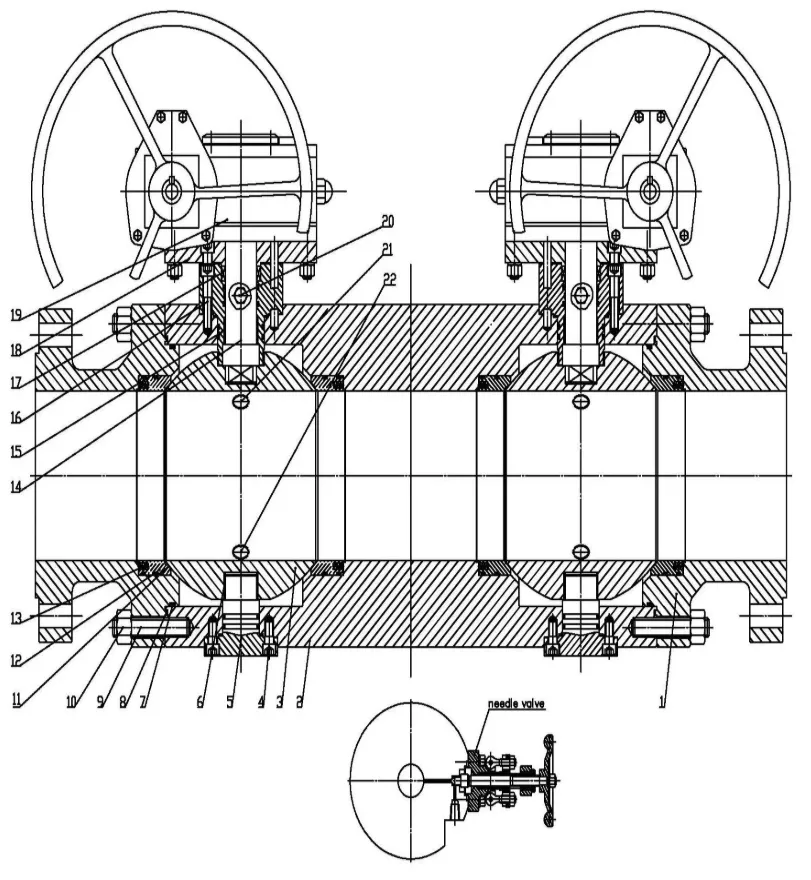

Product Details
NO. PAPT NAME MATERIAL-ASTM
1 BONNET ASTM A105
2 BODY ASTM A105
3 BALL ASTM A182 F304
4 SCREW ASTM A193 B7
5 TRUNNION ASTM A105 ENP
6 BEARING SS PTFE
7 O-RING FKM
8 GASKET GRAPHITE SS
9 BONNET BOLT ASTM A193 B7
10 BOMMET NUT ASTM A193 2H
11 SEAT FACING TCC
12 SEAT ASTM A182 F304
13 SPRING 17-7PH
14 STEM 17-7PH
15 STUFFING BOX ASTM A105 ENP
16 SCREW ASTM A193 B7
17 PACKING GRAPHITE
18 TOP FLANGE ASTM A105N
19 WORM-WHEEL /
20 INJECTION FITTING CS
21 BLOCK CS
22 BLEED CS
Installation

The installation procedure for ball valves is critical to ensuring both long life and satisfying performance. Valves stored on site awaiting installation should be kept in their original packing, in dry conditions, where damage cannot occur.



Before carrying out the installation, it is important to follow the basic procedures described below:

General

Carefully unpack the valve and check valve nameplate for identification of materials.



Remove all packing materials.



All valves are bi-directional and supplied ready to use. Valves can be placed with stem oriented to any direction.



Check the valve for any flow direction indication marks. Appropriate care must be taken, to install the valve for proper flow orientation.



Inspect the valve interior through the end ports to determine it is clean and free from foreign matter according to ASME G93-03E1.



Ensure that all auxiliary connections, if any, (lubricators, drains, vents) are free of damage and properly tightened.



Cycle the valve and inspect any functionally significant features.



Read all the literature and note any special warning tags or plates attached to the valve.



Before installation check to insure the ball is in the fully open position in order to prevent possible damage to the ball and seats. The valve performance depends on its original

Weld End Valves in-line

Welding of valves shall be performed by a qualified person according to the ASME Boiler Construction Code Section IX. For valves to be welded within the E.U., refer to the requirements of ESR 3.1.2 of the Pressure Equipment Directive 97/23/EC.



Valves that will be welded directly to the line must be in the fully open position to protect the ball and seats from excessive temperatures during the welding procedures.



Protect or remove actuators from weld splatter or arc strikes. Valves in the “Fail Close” position should be cycled to the open position.



Allow free flow of water through the drain bottom valve and overflow through the vent valve to prevent overheating all through the welding process. DO NOT heat the center section over 150° C.



Align valve to pipe line, ensuring proper fit to minimize pipe load. Tack weld only.



Complete welding in small segments. Allow enough time for cooling between each segment.



Do not rotate the valve before flushing the line.

Flanged End Valves

Valves with flanged ends should be treated as a single unit and should not be dismantled when installing to pipeline.



Before installing the valves, make sure that the flanges on the mating pipe are free from excessive grit, dirt or burrs, and that there is no mechanical damage to the flanges on the pipe.



When inserting the flange bolts, make sure the bolts are correct size to hold pressure and axial forces.

Troubleshooting guide

MALFUNCTION

PROBABLE CAUSE SOLUTION

Leakage through the valve

Ball surface damage

Replace the ball

Seat damage

Replace the seats or try with injection of sealant grease

Not complete closure

Check Open/Close limits and settings

Ball movement not regular

(actuated valves)

Dirt between ball and seats

Flush the inside, operating the valve 5 times

Dirt between ball and body cavities

Flush the inside, operating the valve 5 times

Not sufficient air supply flow

Confirm working conditions are as per request

Not sufficient air discharge

Include quick exhaust valve

Valve torque too high

Seat damage

Replace the seats

Dirt between ball and seats

Flush the inside operating the valve 5 times

Dirt between ball and body activities

Flush the inside operating the valve 5 times

Excessive Pressure or Temperature

Confirm working conditions are as per request

Stem leakage

Stem nuts loose

Tighten stem nuts

Damaged stem seal surfaces

Replace stem

Damaged stem seals

Replace stem seal or try with injection of sealant grease

Body seal leakage

Gasket damage

Replace gaskets

Excessive Pressure or Temperature Excessive load from piping system

Confirm working conditions are as per request Verify piping system architecture

Excessive valve noise

Error in valve sizing

Confirm valve sizing

Not complete opening

Check Open/Close limits and settings

Fail in valve movement after electrical input (actuated valves)

Solenoid valve fail

Confirm power supply Replace the solenoid

Fail in limit switch signal

Un-correct settings

Check Open/Close settings

Limit switch is broken

Replace limit switch

Un-correct power supply

Confirm working conditions are as per request
